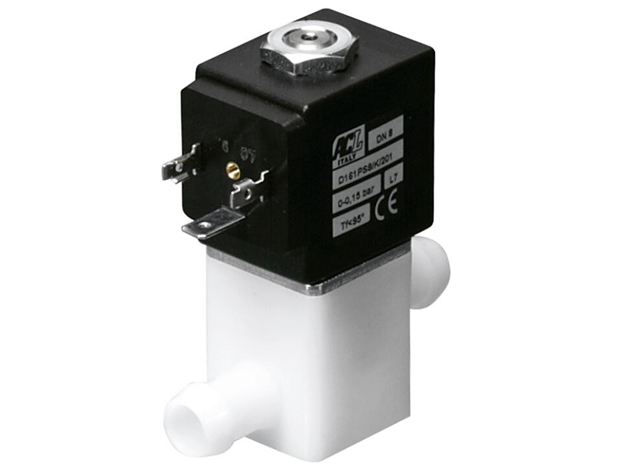

ACL電磁閥2位2通直動式161
ACL電磁閥2位2通直動式161
詳細介紹
ACL 電磁閥2位2通 直動式161 電磁閥2通常閉 與干式電樞直接作用。 沒有金屬部件與介質接觸。 構造 本體縮醛共聚物 電樞管AISI 303 柱塞和芯AISI 430FR 彈簧AISI 302 密封材料SILICONE-FPM 功能 最大允許壓力PS 2bar 最大流體粘度25cSt（mm2/s） 環境溫度：根據線圈，從-10°C到+80°C 垂直線圈在上方的安裝位置 DESCRIPTION Solenoid valve 2 way normally closed direct acting with dry armature. No metal parts in contact with the media. CONSTRUCTION Body Acetal copolymer Armature tube AISI 303 Plunger and core AISI 430FR Springs AISI 302 Seal material SILICONE - FPM FEATURES Maximum allowable pressure PS 2bar Maximum fluid viscosity 25cSt (mm2/s) Ambient temperature: from -10°C to +80°C according to the coil Mounting position with vertical coil above 2/2 Direct Acting Dry | |||||||||||||

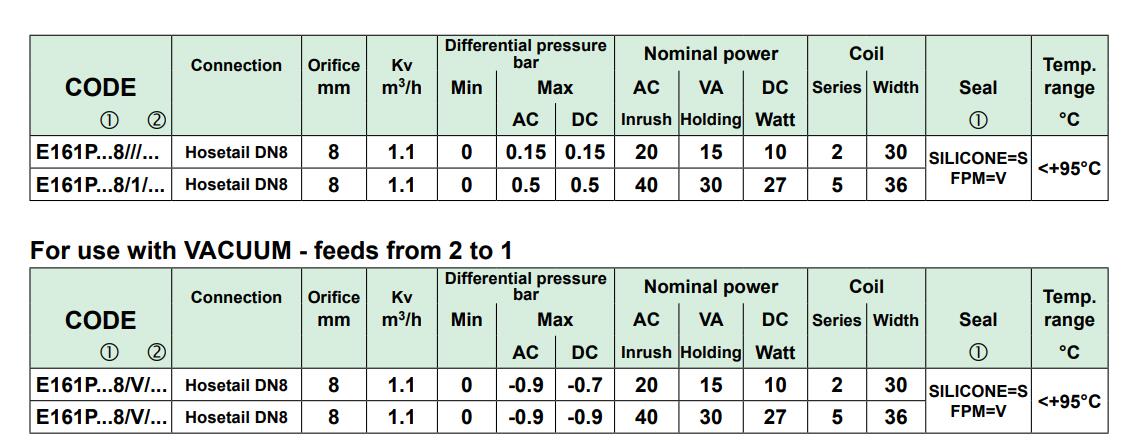

| TYPE | PORT SIZE | ORIFICE | Kv | DIFFERENTIAL PRESSURE ΔP bar | NOMINAL POWER | COIL | SEAL | TEMPERATURE RANGE | |||||
| mm | m3/h | MIN | MAX | AC-VA | DC | width | TYPE | ||||||
| AC | DC | INRUSH | HOLDING | W | °C | ||||||||
 161 | Portagomma | 8 8 8 8 | 1.1 1.1 1.1 1.1 | 0 0 0 0 | 0.15 -0.9 0.5 -0.9 | 0.15 -0.7 0.5 -0.9 | 20 20 40 40 | 15 15 30 30 | 10 10 27 27 | 30 30 36 36 | 2 2 5 5 | SILICONE | <+95 |
