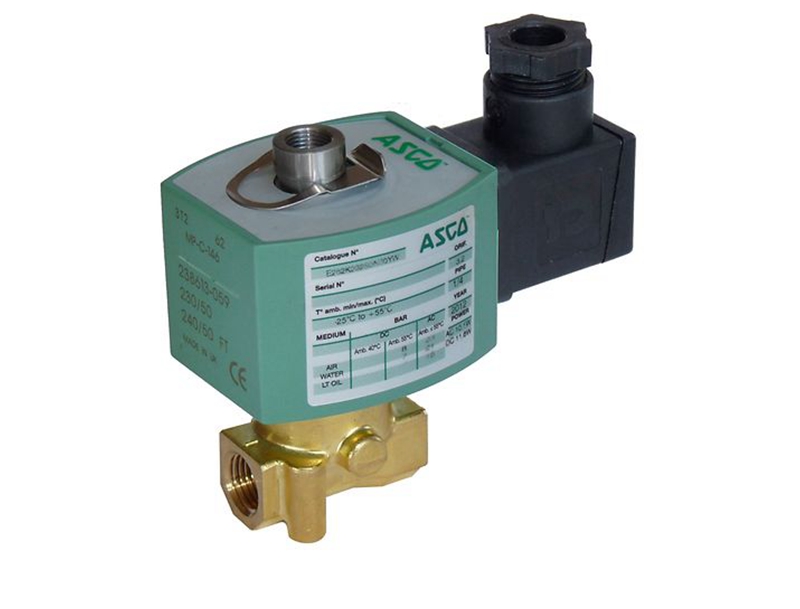

ASCO電磁閥 EF8314H301DC24/DCD

ASCO電磁閥 EF8314H301DC24/DCD

規格

氣門執行電磁閥直接作用

閥體材料黃銅;不銹鋼

MediaAir，惰性氣體;輕質油;水

管道/端口尺寸1/8“; 1/4”

端口類型NPTF

功能3路-3/2常閉; 3路-3/2常開; 3路-3/2通用

流量從0.5 Cv到1.0 Cv

電壓100至240交流/直流電壓范圍; 110交流; 115交流電; 12直流電; 12至，

24直流電壓范圍; 120交流; 120直流電; 125直流電池充電; 220交流; 24

交流; 24直流電; 24至120交流/直流電壓范圍; 240交流-50; 50/60 ; 60

操作環境危險;室內的戶外的

標準/法規第一類第1部分 ; Cla

ASCO系列314，也稱為8314 ,是一系列直接作用的通用電磁閥，可用作小

型控制閥和執行機構的中等流量先導。該閥門只有一個彈簧和兩個運動部

件,非常適合基本的三通先導操作。適用于分析和診斷設備、汽車、灌裝、

除塵系統和生命科學應用

Specifications

Valve ActuationSolenoid - Direct Acting

Body MaterialBrass; Stainless Steel

MediaAir, Inert Gas; Light Oil; Water

Pipe / Port Size1/8 "; 1/4 "

Port TypeNPTF

Function3 way - 3/2 Normally Closed; 3 way - 3/2 Normally Open; 3 way - 3/2 Universal

FlowFrom 0.5 Cv to 1.0 Cv

Voltage100 to 240 AC/DC Voltage Ranging; 110 AC; 115 AC; 12 DC; 12 to 24 DC Voltage Ranging; 120 AC; 120 DC; 125 DC Battery Charging; 220 AC; 24 AC; 24 DC; 24 to 120 AC/DC Voltage Ranging; 240 AC - 50; 50/60; 60

Operating EnvironmentHazardous; Indoor; Outdoor

Standards / RegulationsClass I Div 1; Cla

The ASCO Series 314, also known as 8314, is a line of direct-acting general service solenoid valves which can be used as moderate flow pilots for smaller control valves and actuators. With only a spring and two moving parts, the valve is ideal for basic three-way piloting operation It is suitable for analytical and diagnostic equipment, automotive, bottling, dust collector system, and life science
