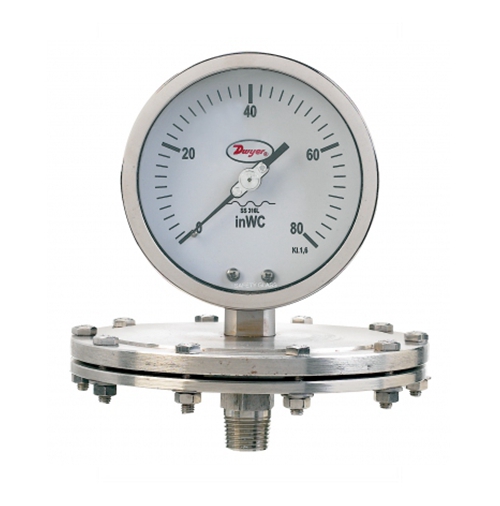

Dwyer壓力表SGPpressure gauge SGP

Dwyer壓力表SGP

不銹鋼低壓表

SGP系列 不銹鋼低壓表帶公制/英制雙刻度，精度為1.6%。它采用304不銹鋼的外殼，316L不銹鋼的內室和316不銹鋼的膜片，具備優良的抗化學腐蝕性能。 SGP系列能承受外部溫度到65攝氏度，過程溫度到120攝氏度。有真空，正壓，正負組合量程范圍到235英寸水柱。

產品規格：

介質：兼容氣體和液體

連接件材質：316L不銹鋼的內室和316不銹鋼的膜片

外殼：304不銹鋼

精確度：±1.6% FS，

壓力范圍：130%FS

溫度范圍：-13 to 149°F (-25 to 65°C); 特殊加工: 248°F (120°C).

尺寸： 4" (100 mm)

連接件尺寸：1/2" male NPT.

重量：3.1 lb (1.4 kg)..

外殼防護等級：NEMA 3 (IP54)

Dwyer pressure gauge SGP

Stainless steel low pressure gauge

SGP series stainless steel low pressure watch with metric/English double scale, with accuracy of 1.6%. It adopts 304 stainless steel shell, 316L stainless steel inner chamber and 316 stainless steel diaphragm, with excellent chemical corrosion resistance. SGP series can withstand external temperature to 65 ℃ and process temperature to 120 ℃. There are vacuum, positive pressure, positive and negative combined range to 235 inches of water column.

Product specification:

Medium: compatible with gas and liquid

Connection material: 316L stainless steel inner chamber and 316 stainless steel diaphragm

Shell: 304 stainless steel

Accuracy: ± 1.6% FS,

Pressure range: 130% FS

Temperature range: - 13 to 149 ° F (- 25 to 65 ° C); Special processing: 248 ° F (120 ° C)

Size: 4 "(100 mm)

Connection size: 1/2 "male NPT

Weight: 3.1 lb (1.4 kg)

Enclosure protection grade: NEMA 3 (IP54)
