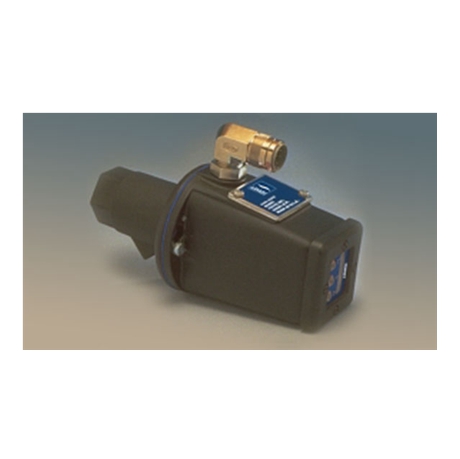

福尼Forney檢測器 DPD

福尼Forney檢測器 DPD

具有自動UV或IR調節功能的自包含檢測器。 輸入功率和輸出火焰信號通過堅固的軍用連接器制成。
規格
安裝：1英寸NPT觀察管配件
3/8” NPT吹掃空氣接頭
材質：壓鑄鋁外殼，磨砂黑，防滑
完
電氣：24 VDC（可從相關的Forney放大器獲得）
額定電流：60mA
溫度：超級藍：-4°F至+ 131°F
-20°C至+ 55°C
經典：-4°F至+ 150°F
-20°C至+ 65°C
濕度：0-95％Rh不凝結
重量：2.4磅 （1.1公斤）
冷卻空氣：10 SCFM @ 6” WC（15 SCFM @ 10” WC，帶光纖）
認證：互助工廠，CE（咨詢系統工廠
組態）
傳感器/波長：超藍模型–超藍硅電池/ 290 – 390 nm

Forney detector DPD

Self contained detector with automatic UV or IR adjustment function. The input power and output flame signal are made of solid military connectors.

Specifications

Installation: 1 inch NPT observation pipe fitting

3/8 "NPT PURGE AIR CONNECTION

Material: die-casting aluminum shell, frosted black, anti-skid

finish

Electrical: 24 VDC (available from the relevant Forney amplifier)

Rated current: 60mA

Temperature: Super Blue: - 4 ° F to+131 ° F

-20 ° C to+55 ° C

Classic: - 4 ° F to+150 ° F

-20 ° C to+65 ° C

Humidity: 0-95% Rh, non condensing

Weight: 2.4 lbs (1.1 kg)

Cooling air: 10 SCFM @ 6 "WC (15 SCFM @ 10" WC with optical fiber)

Certification: Mutual Aid Factory, CE (Consulting System Factory

Configuration)

Sensor/wavelength: ultrablue model – ultrablue silicon cell/290 – 390 nm
