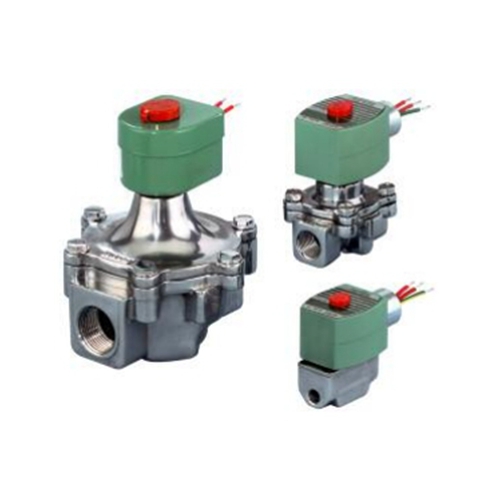

ASCO電磁閥8040 8215系列?8040H006? 8040H007?
詳細介紹
ASCO電磁閥8040 8215系列8040H0068040H007
直動式或先導式
鋁體電磁閥
NPT 1/8“至3”
特征
?輕型，低成本的空氣閥門
?適用于低壓應用
?提供高流量，Cv高達138（Kv 118）
?空氣和真空服務南京/云/聯/電/氣報價
Pipe Size(in) | OrificeSize(mm) | Kv Flow Factor(m3/h) | GasCapacityBtu/hr≈ | Operating PressureDifferential (bar) | Max. FluidTemp.?C | Aluminum Body | Const.Ref. | UL? Listing | Watt Rating/ Class of CoilInsulation ? | |||||
Min. | Max. AC | Max. DC | ||||||||||||
Air-FuelGas | Air-FuelGas | AC | DC | Catalog Number | AC | DC | AC | DC | ||||||
NORMALLY CLOSED (Closed when de-energized) | ||||||||||||||
1/8 | 7.9 | .86 | 53,700 | 0 | 1.0 | - | 52 | - | 8040H006 | 11 | m | 6.1/F | - | |
1/4 | 7.9 | .94 | 59,000 | 0 | 1.0 | - | 52 | - | 8040H007 | 11 | m | 6.1/F | - | |
3/8 | 7.9 | 1.0 | 64,400 | 0 | 1.0 | - | 52 | - | 8040H008 | 11 | m | 6.1/F | - | |
3/8 | 19 | 2.9 | 183,000 | 0 | 3.4 | 1.7 | 52 | 40 | 8215G010 | 2 | m | 10.1/F | 11.6/F | |
3/8 | 19 | 3.0 | - | 0.3 | 8.6 | 8.6 | 52 | 40 | 8215G001 ? | 1 | m | 6.1/F | 11.6/F | |
1/2 | 19 | 4.6 | 291,000 | 0 | 0.1 | - | 52 | - | 8040G022 | 13A | m | 10.1/F | - | |
1/2 | 19 | 3.8 | 238,500 | 0 | 3.4 | 1.7 | 52 | 40 | 8215G020 | 2 | m | 10.1/F | 11.6/F | |
1/2 | 19 | 4.1 | - | 0.3 | 8.6 | 8.6 | 52 | 40 | 8215G002 ? | 1 | m | 6.1/F | 11.6/F | |
3/4 | 19 | 8.1 | 449,000 | 0 | 0.1 | - | 52 | - | 8040G023 | 13B | m | 10.1/F | - | |
3/4 | 19 | 4.4 | 247,500 | 0 | 3.4 | 1.7 | 52 | 40 | 8215G030 | 4 | m | 10.1/F | 11.6/F | |
3/4 | 19 | 4.4 | - | 0.3 | 8.6 | 8.6 | 52 | 40 | 8215G003 ? | 3 | m | 6.1/F | 11.6/F | |
1 | 41 | 18 | 1,119,000 | 0 | 1.7 | - | 52 | - | 8215B050? | 6 | m | 15.4/F | - | |
1 | 41 | 18 | 1,119,000 | 0 | - | 1.7 | - | 40 | 8215G050≥￥ | 16 | m | - | 15.8/F | |
1 1/4 | 41 | 27 | 1,730,000 | 0 | 1.7 | - | 52 | - | 8215B060? | 6 | m | 15.4/F | - | |
1 1/4 | 41 | 27 | 1,730,000 | 0 | - | 1.7 | - | 40 | 8215G050?≥￥ | 16 | m | - | 15.8/F | |
1 1/2 | 41 | 30 | 1,900,000 | 0 | 1.7 | - | 52 | - | 8215B060? | 6 | m | 15.4/F | - | |
1 1/2 | 41 | 30 | 1,900,000 | 0 | - | 1.7 | - | 40 | 8215G060?≥￥ | 16 | m | - | 15.8/F | |
2 | 53 | 51 | 3,251,000 | 0 | 1.7 | - | 52 | - | 8215B070? | 7 | m | 15.4/F | - | |
2 | 53 | 51 | 3,251,000 | 0 | - | 1.0 | - | 40 | 8215G070?≥￥ | 17 | m | - | 15.8/F | |
2 1/2 | 76 | 100 | 5,821,000 | 0 | 0.3 | - | 52 | - | 8215A090 ? | 8 | m | 28.2/F | - | |
3 | 76 | 118 | 7,430,000 | 0 | 0.3 | - | 52 | - | 8215A040 ? | 8 | m | 28.2/F | - | |
NORMALLY OPEN (Open when de-energized) | ||||||||||||||
3/8 | 19 | 2.74 | 172,500 | 0 | 8.6 | 8.6 | 52 | 40 | 8215G013 | 9 | l | 10.1/F | 11.6/F | |
1/2 | 19 | 3.4 | 206,250 | 0 | 8.6 | 8.6 | 52 | 40 | 8215G023 | 9 | l | 10.1/F | 11.6/F | |
3/4 | 19 | 3.9 | 247,500 | 0 | 8.6 | 8.6 | 52 | 40 | 8215G033 | 10 | l | 10.1/F | 11.6/F | |
1 | 41 | 19 | 1,191,750 | 0 | 1.7 | 1.0 | 52 | 25 | 8215C053 | 12 | 18 | l | 15.4/F | 14.9/B |
1 1/4 | 41 | 28 | 1,793,250 | 0 | 1.7 | 1.0 | 52 | 25 | 8215C063 | 12 | 18 | l | 15.4/F | 14.9/B |
1 1/2 | 41 | 32 | 1,988,250 | 0 | 1.7 | 1.0 | 52 | 25 | 8215C073 | 13 | 19 | l | 15.4/F | 14.9/B |
2 | 53 | 50 | 3,100,000 | 0 | 1.7 | 1.0 | 52 | 25 | 8215C083 | 14 | 20 | l | 15.4/F | 14.9/B |
2 1/2 | 76 | 100 | 6,290,000 | 0 | 0.3 | - | 52 | - | 8215B093√? | 15 | l | 28.2/F | - | |
