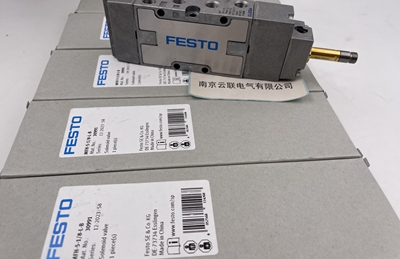

FESTO 電磁閥MFH-5-1/8-L-B
詳細介紹
FESTO 電磁閥MFH-5-1/8-L-B
閥功能
兩位五通，單穩態
標準額定流量（根據 DIN 1343 標準化）
1000 l/min
氣接口，氣口 1
G1/8
驅動方式
電控
閥功能
兩位五通，單穩態
驅動方式
電控
寬度
26 mm
標準額定流量（根據 DIN 1343 標準化）
1000 l/min
工作氣口
G1/8
工作壓力
0.3 Mpa ... 1 Mpa
工作壓力
3 bar ... 10 bar
結構特點
活塞閘閥
復位類型
氣動彈簧
公稱通徑
8 mm
密封原理
軟密封
安裝位置
可選
FESTO solenoid valve MFH-5-1/8-L-B
Valve function
Two position five way, monostable state
Standard rated flow (standardized according to DIN 1343)
1000 l/min
Air interface, air port 1
G1/8
Driving method
Electric control
Valve function
Two position five way, monostable state
Driving method
Electric control
width
26 mm
Standard rated flow (standardized according to DIN 1343)
1000 l/min
Working air port
G1/8
working pressure
0.3 Mpa 1 Mpa
working pressure
3 bar 10 bar
Structural characteristics
Piston gate valve
Reset type
Pneumatic spring
Nominal diameter
8 mm
Sealing principle
Soft sealing
Installation location
Optional
