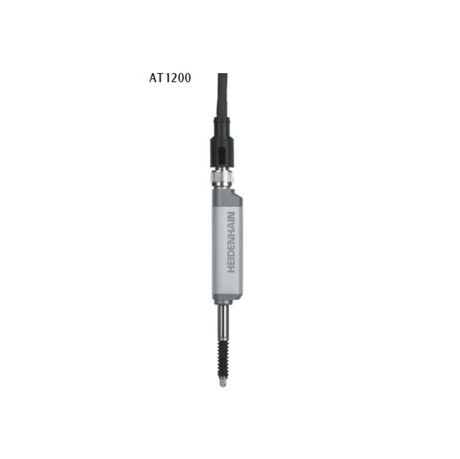

海德漢 heidenhain長度計 AT 1218 AT 3018 AT 1217 AT 3017
詳細介紹
海德漢 heidenhain長度計 AT 1218 AT 3018 AT 1217 AT 3017
帶有EnDat接口的絕對長度計
?在線診斷
?防護等級高達IP67
?帶有CRC的串行數據傳輸
Mechanical data | AT 1218 | AT 3018 | AT 1217 | AT 3017 |
Plunger actuation Position of plunger at rest | By measured object Extended | Pneumatic Retracted | ||
Measuring standard | DIADUR grating on glass; grating period 188.4 μm | |||
System accuracy | ±1 μm | ±2 μm | ±1 μm | ±2 μm |
Position error per signal period | ? ± 0.7 μm | |||
Measuring range | 12 mm | 30 mm | 12 mm | 30 mm |
Working pressure | – | 0.7 bar to 1.8 bars | 1.1 bars to 1.8 bars | |
Mech. permissible traversing speed | ? 80 m/min | ? 120 m/min | ? 80 m/min | ? 120 m/min |
Radial force | ? 0.5 N (mechanically permissible) | |||
Fastening | Clamping shank ? 8h6 | |||
Operating orientation | Any | |||
Vibration 55 Hz to 2000 Hz Shock 11 ms | ? 100 m/s2 (EN 60 068-2-6) ? 500 m/s2 (EN 60 068-2-27) | |||
Operating temperature | 10 °C to 40 °C; reference temperature 20 °C WIN UNION inquiry [email protected] | |||
Protection EN 60 529 | IP67 | IP641) IP67 upon request | IP641) | |
Mass without cable | 80 g | 100 g | 80 g | 100 g |
