詳細介紹
為什么可靠的Forney福尼油點火器很重要？
油點火器用于為化石燃料燃燒器提供穩定可靠的點火源。燃燒器點火不可靠不僅會造成燃燒器問題，還會造成重大的經濟損失。因此，重要的是點火器能夠可靠地啟動燃燒器內的點火。Forney DURAFire油點火器（圖1）就是這樣一種油點火器，其起燃可靠性超過95%。
Why Is a Reliable Oil Igniter Important?

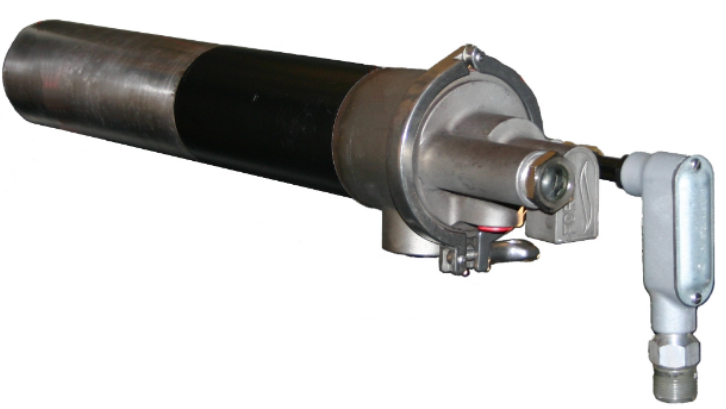

Oil igniters are used to provide a stable and reliable ignition source for fossil fuel burners. Unreliable burner ignition not only creates a burner problem but also results in significant financial losses. As such, it is important that the igniter can be counted on to reliably start ignition within the burner. The Forney DURAFire oil igniter (Figure 1) is one such oil igniter that offers over 95% light-off reliability.
| Fuel | No. 2 oil |
| Capacity Rating* | 6–33 MBtu/hr (1.76–9.67 MW) |
| Atomization Media | Air |
| Fuel Pressure | 60 psig (4.22 kg/cm2) at igniter |
| Atomizing Air | Pressure: 80 psig (5.62 kg/cm2) at igniter. Flow: 0.40 lb air/1 lb fuel |
| Cooling/Combustion Air | Flow: 60 SCFM ( 1.7 Nm3/min) at igniter. Pressure Drop: Approximately 3 in. (76.2 mm ) WC across device Connection: 1? inch NPT female |
| Length | Available in 2” (50.8 mm) increments from 24 to 180 inches (609 to 4572 mm) |
| Guide Tube Outside Diameter | A 4” (101.6 mm) - igniter can be installed in an existing mount tube for a 4” (101.6 mm) diameter device |
| Mount Tube Outside Diameter | 4.5” (114.3 mm) |
| Construction Material | Guide Tube and Mount Tube - Carbon Steel. Furnace End of Guide Tube - 304 Stainless Steel. Oil Tip Assembly - 304 Stainless Steel |
