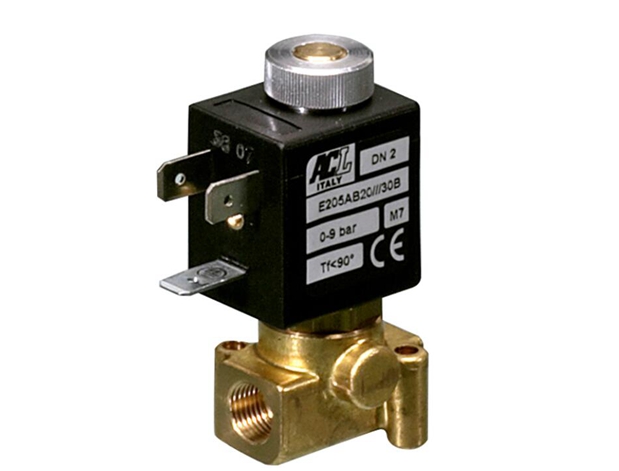

ACL 2位3通直動式閥Direct Acting 307
詳細介紹
ACL 2位3通直動式閥Direct Acting 307
電磁閥3通常開
直接作用提升閥型
構造
車身黃銅
電樞管黃銅
柱塞和芯AISI 430FR
彈簧AISI 302
密封材料NBR-FPM-EPDM
功能
最大允許壓力PS 50bar?
最大流體粘度25cSt（mm2/s）
環境溫度：根據線圈，從-10°C到+80°C
通用安裝位置
選項：不銹鋼電樞管
化學鍍鎳
7系列防爆線圈
符合ATEX-EExmII
帶軟管尾部連接的排氣口
DESCRIPTION
Solenoid valve 3 way normally open
direct acting poppet type

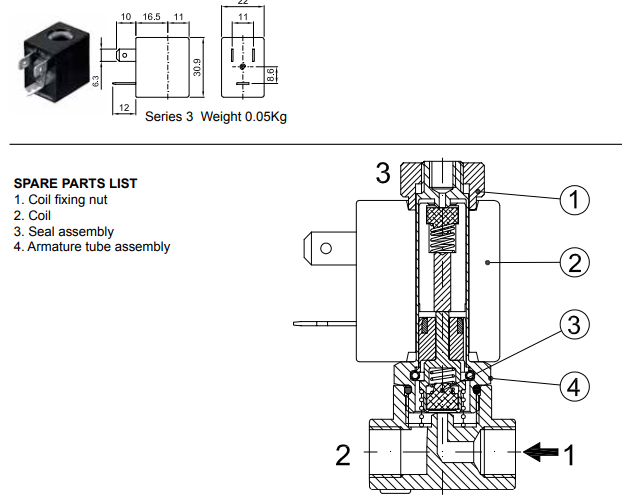

CONSTRUCTION
Body Brass
Armature tube Brass
Plunger and core AISI 430FR
Springs AISI 302
Seal material NBR - FPM - EPDM
FEATURES
Maximum allowable pressure PS 50bar?
Maximum fluid viscosity 25cSt (mm2/s)
Ambient temperature: from -10°C to +80°C according to the coil
Universal mounting position
OPTIONS: Stainless steel armature tube
Electroless nickel plating
Series 7 explosion proof coil according
to ATEX - EExmII
Exhaust port with hosetail connection

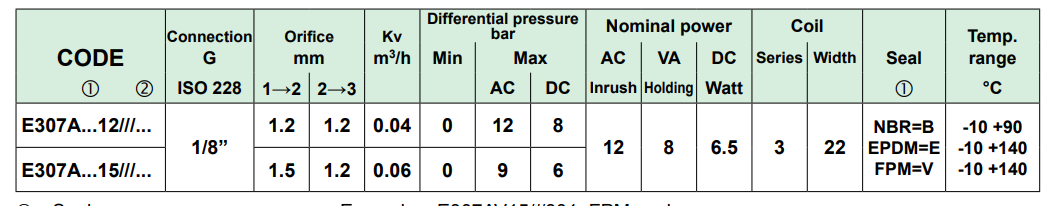

| 3/2 Direct Acting NO | ||||||||||||||
| TYPE | PORT SIZE | ORIFICE | Kv | DIFFERENTIAL PRESSURE ΔP bar | NOMINAL POWER | COIL | SEAL | TEMPERATURE RANGE | ||||||
| mm | m3/h | MIN | MAX | AC-VA | DC | width | TYPE | |||||||
| 1-2 | 2-3 | AC | DC | INRUSH | HOLDING | W | °C | |||||||
 307 | G 1/8 | 1.2 1.5 | 1.2 1.2 | 0.04 0.06 | 0 0 | 12 9 | 8 6 | 12 | 8 | 6.5 | 22 | 3 | NBR EPDM FPM | -10 +90 -10 +140 -10 +140 |
