ACL 2位3通直動式閥Direct Acting 312

ACL 2位3通直動式閥Direct Acting 371

說明

電磁閥3通不銹鋼AISI 316

直接作用提升閥型

建造

閥體AISI 316

電樞管AISI 316

柱塞和芯AISI 430FR

遮光環銀色

彈簧AISI 316

密封NBR-FPM-EPDM

功能

最大允許壓力PS 50barD

最大流體粘度25cSt ( mm2/s )

環境溫度:根據線圈,從-10°C到+80°C

通用安裝位置

DESCRIPTION

Solenoid valve 3 way in stainless steel AISI 316

direct acting poppet type

COSTRUCTION

Body AISI 316

Armature tube AISI 316

Plunger and core AISI 430FR

Shading ring Silver

Spring AISI 316

Seal NBR - FPM- EPDM

FEATURES

Maximum allowable pressure PS 50barD

Maximum fluid viscosity 25cSt (mm2/s)

Ambient temperature. from -10°C to +80°C according to the coil

Universal mounting position

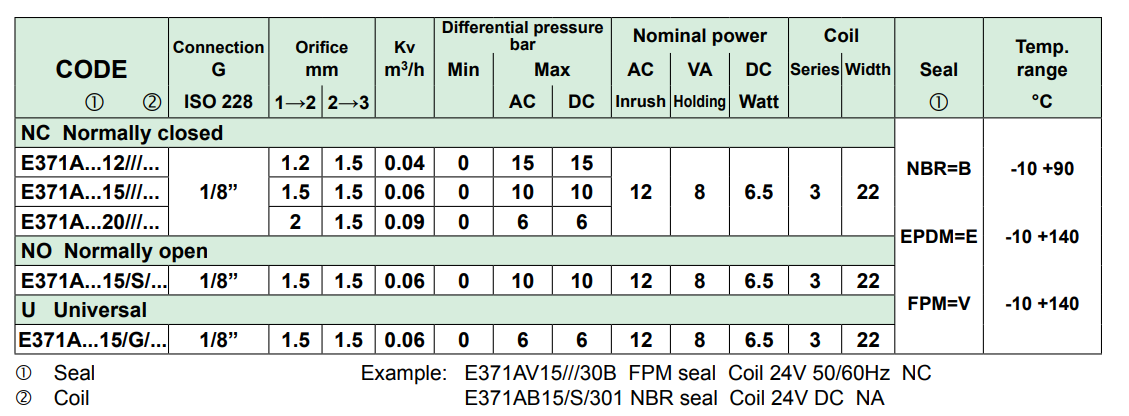

3/2 Direct Acting NO

TYPE

PORT SIZE

ORIFICE

Kv

DIFFERENTIAL PRESSURE ΔP bar

NOMINAL POWER

COIL

SEAL

TEMPERATURE RANGE

mm

m3/h

MIN

MAX

AC-VA

DC

width

TYPE

1-2

2-3

AC

DC

INRUSH

HOLDING

W

°C

371 NO

1/8

1.5

1.5

0.06

0

15 10 6

15 10 6

12

8

6.5

22

3

NBR EPDM FPM

-10 +90 -10 +140 -10 +140
