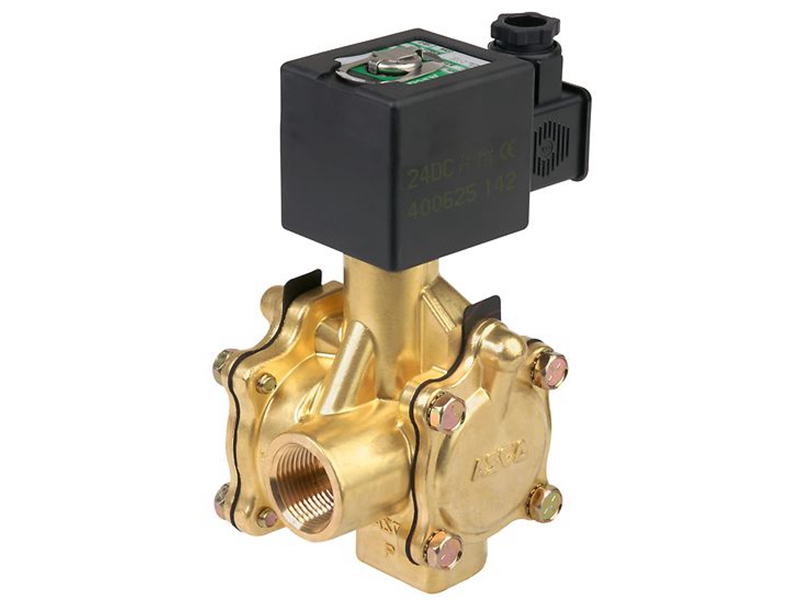

ASCO電磁閥8316G001

ASCO電磁閥8316G001

規格

氣門執行電磁閥-直接作用

閥體材料不銹鋼

介質空氣，惰性氣體

管道/端口尺寸1/4“

端口類型NPTF

功能3路-3/2常閉

流量1.50Cv

電壓100至240交流/直流電壓范圍; 12至24直流電壓范圍; 125直流電池充

電; 110交流; 12直流電; 120交流; 120直流電; 24交流; 24直流電; 24至

120交流/直流電壓范圍; 250直流電池充電; 240-50 ; 50/60 ; 60

操作環境危險;室內的戶外的

標準/法規ATEX 0-20區; - -級1區; -級2區; CSA; IEC Ex0-20區; SIL ;

類型1;類型2;類型3;3S型;類型4;4X型;類型6;6P型;類型7;類型

9; ULSpecifications

Valve ActuationSolenoid - Direct Acting

Body MaterialStainless Steel

MediaAir, Inert Gas

Pipe / Port Size1/4"

Port TypeNPTF

Function3 way - 3/2 Normally Closed

Flow1.50 Cv

Voltage100 to 240 AC/DC Voltage Ranging; 12 to 24 DC Voltage Ranging; 125 DC Battery Charging; 110 AC; 12 DC; 120 AC; 120 DC; 24 AC; 24 DC; 24 to 120 AC/DC Voltage Ranging; 250 DC Battery Charging; 240 - 50; 50/60; 60

Operating EnvironmentHazardous; Indoor; Outdoor

Standards / RegulationsATEX Zone 0-20; Class I Div 1; Class I Div 2; CSA; IEC Ex Zone 0-20; SIL; Type 1; Type 2; Type 3; Type 3S; Type 4; Type 4X; Type 6; Type 6P; Type 7; Type 9; UL
