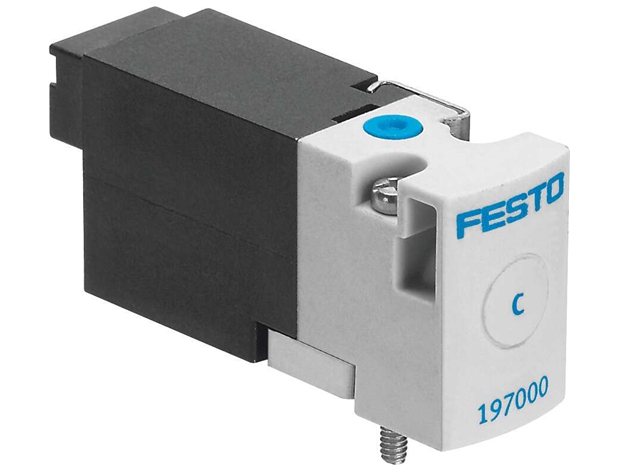

FESTO 費斯托 電磁閥Solenoid valve MHA1-M5H-3/2G-0,6-HC

FESTO 費斯托  電磁閥Solenoid valve MHA1-M5H-3/2G-0,6-HC

電磁閥 MHA1, MHP1

小巧、快速、多用途和耐用：緊湊的微型閥可以驅動許多密集排列的通道或氣缸。可選：具備保持電流降低功能的緊湊型電子模塊。

直接控制的錐閥

微型閥：外形尺寸 10 mm

開關時間達 4 ms

板接式閥門

氣路板，用于 2 ... 10 個閥

使用先導閥

UL 認證；與 VUVG 相同的接頭和電纜

Compact, fast, versatile, and durable: Compact micro valves can drive

many densely arranged channels or cylinders. Optional: Compact

electronic module with reduced current retention function.

Direct controlled cone valve

Micro valve: overall size 10 mm

Switching time up to 4 ms

Plate mounted valve

Air circuit board for 2 10 valves

Using pilot valves

UL certification; Same connectors and cables as VUVG

yunlian technology  inquiry and quotation  [email protected]

云聯電氣 技術支持 報價[email protected]

兩位五通或兩位三通，可轉換，單電控

VSNC-FC-M52-MD-G14-F8

VSNC-FC-M52-MD-N14-F8

兩位五通閥，雙電控

VSNC-F-B52-D-G14-F8

VSNC-F-B52-D-N14-F8

三位五通閥

VSNC-FP53C-MD-G14-F8

VSNC-FP53U-MD-G14-F8

VSNC-F-P53E-MD-G14-F8

VSNC-FP53C-MD-N14-F8

VSNC-F-P53U-MD-N14-F8

VSNC-FP53E-MD-N14-F8
